SW17 Highly Energy Efficient Outward Opening Entrance Doorsets Uw = 0,8 W/m2K
Our SW17 Entrance Door is a suitable match for our SW17 windows and is available outward opening only. With 48mm Triple Glazing and/or 78mm insulated panels it’s possible to achieve a U-value of 0,8 W/m2K.
All of these doors are supplied prefinished and are available in RAL, NCS, and Translucent colours of your choice. Also available Aluclad.
Our SW17 Door uses a locking system manufactured by Maco from Germany. This door is availble as single or double leaf doorset with a fiber threshold.

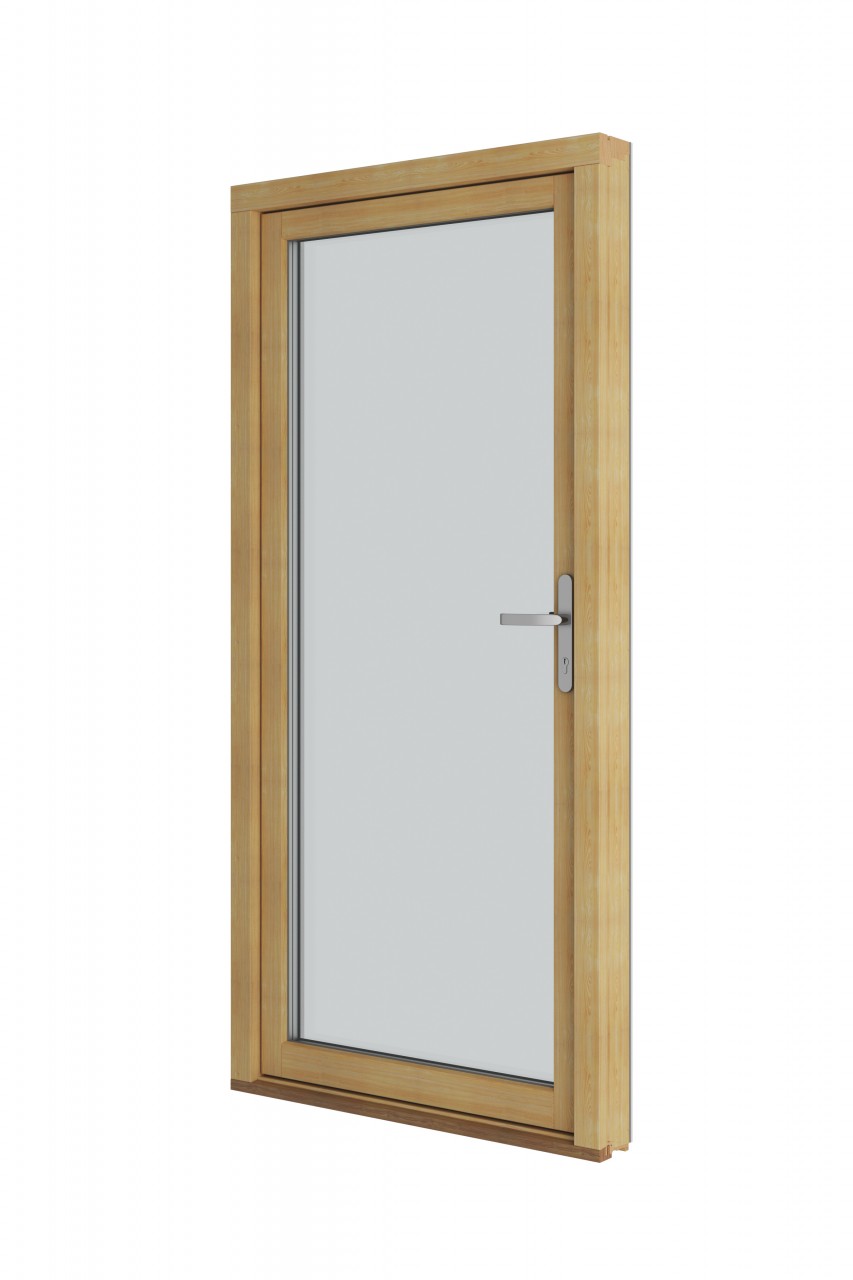

Our SW17 Balcony Door has a slimmer profile, similar to our SW17 Window. Hardware used on these door is an espagnolette locking system from IPA and hinges from ASSA.
Range of models:
Material of frame and sash
Glue-lam pine, Nordic timber quality class A1-A3
Finishing
Teknos Aquatop and/or VRC
RAL; NCS and translusent systems:
Technical Data for SW17 Energy Efficient Entrance Doorsets
| Sound Insulation | Rw = 33 dB (-2;-5) – standard glazing |
| Frame Depth | Variable: 92…120 mm (94 – 122 mm with alucladding) |
| Material of Sash and Frame | Door leaf: insulated panel; door frame: qlue-lam pine; quality class A1-A3; fiber/oak threshold |
| Glazing | 48 mm 3-glazing; 2 LowE glasses, argon filled |
| Hardware | Simonswerk hinges (balcony door with ASSA hinges); ASSA or Maco espagnolette and handle |
| Aluminium Cladding | Optional external alucladding |
| Thermal transmittance | Uw = 0,80 W/m²K (0,9 x 2,1 m door with standard glazing) |
| Number of sash gaskets | 1 gasket on door leaf, additional gasket on door frame |
| Dimensions | Door leaf: W 550 – 1073 mm; H 1651 – 2390 mm |
Entrance Doors:
Drawings: Timber door PDF and DWG
Drawings: Aluclad door PDF and DWG
Balcony Doors:
Drawings: Timber door PDF and DWG
Drawings: Aluclad door PDF and DWG
