SW17 Outward Opening Passive House Triple Glazed Wooden or Aluclad Windows Uw = 0,75 W/m²K

Our SW17 Outward Opening Energy Efficient Triple Glazed Wooden or Aluclad Window is the answer to today’s need for higher energy efficiency combined with the simplicity of Nordic design. Suitable for cold Northern winters, having two gaskets ensures that the profile system is highly insulated and condensation risks between the frame and casement are minimized. Uw = 0.75 W/m²K

This window boasts 48 mm triple glazing with 2 low-E coatings and a warm edge spacer bar (SGG Swisspacer Ultimate) which guarantees excellent insulation and comfort. Sun protection coatings can also be added if required.

This window is available in fully reversible, side hung, side hung projecting, top hung projecting, fixed light & shaped frame styles.

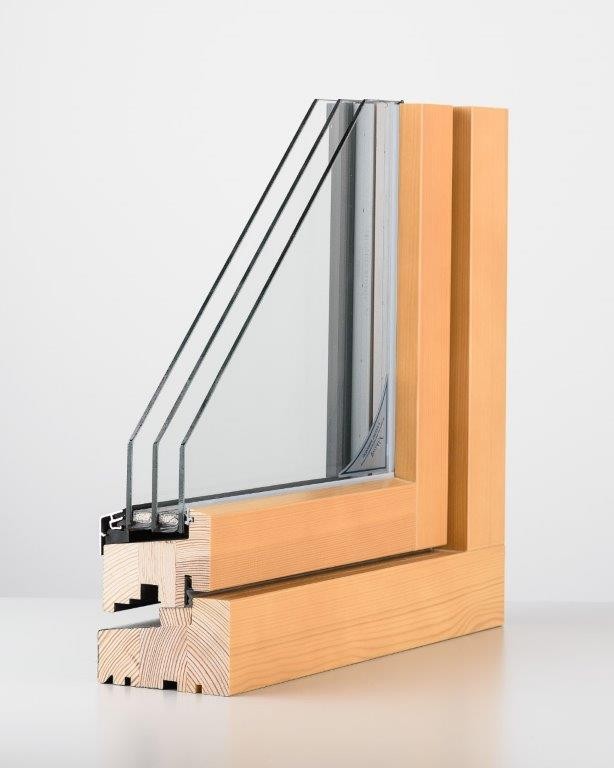

SW17 wooden window: Traditional, enduring, energy efficient, sustainable. Drawings (PDF) Drawings (DWG)
SW17 aluminium clad window: Modern, enduring, energy efficient, sustainable. Drawings (PDF) Drawings (DWG)

Opening Types



SIDE HUNG

Our Side Hung Window is a window type with a traditional design. Also available as a double casement “French” window (without a mullion so leaving a completely clear opening), suitable for use as a fire escape evacuation opening.

Dimensions: Maximum Width 970mm – Height 1600mm

Minimum Width: 430mm

Maximum Opening Sash Weight: 50 kg

Also Available with concealed hinges.



TOPHUNG

Our Top Guided Window can accommodate up to a 2 m² opening casement window. Sliding hinges hidden into the groove between frame and sash provide a modern appearance with increased security. Depending on the opening dimensions this type of window can be used as a fire escape. One of the  recommended uses of top guided windows is in places where it is possible to clean the window from the outside eg ground floor, balconies etc.

Maximum Width: 1566mm – Maximum Height: 1600 mm**

Maximum Opening Sash Weight: 60kg

Minimum Width: 500mm



TOP SWING

Our Top Swing Window can accommodate up to a 2 m² opening casement window and is a real light catcher for your home. Sliding hinges hidden in the groove between frame and sash provide a modern look with increased security. The sash can be reversed almost 180º for easy access and cleaning so  can be used on upper floors. Also suitable for Fire Escape egress depending on dimensions.

Maximum Width: 1566mm – Maximum Height: 1600 mm**

Maximum Opening Sash Weight: 80 kg

Minimum Width: 453mm

** Not possible to get the max height and max width at the same time.



FIXED LIGHT



MULTI LIGHT (WITH TRANSOMS AND MULLIONS)

Our fixed lights and windows with mullions and transoms are a solution including a glass unit installed directly into the window frame, a good way to increase light gain to the inside of the building. Our product line also includes a wide variety of possibilities for structurally dividing frames with mullions and transoms. Single, multi-light window frames can be manufactured in sizes up to 2.5m x 3.2m

We also offer windows for angular and circular openings.

Finishing

Teknos Aquatop and/or VRC

RAL; NCS and translusent systems:

Glazing bar options

Technical data of SW17 window

Sound Insulation	Rw = 33 dB (-2;-5) – standard glazing
Frame Depth	Variable: 92…120 mm (94 – 122 mm with alucladding)
Material of Sash and Frame	Glue-lam pine; quality class A1-A3
Glazing	48 mm 3-glazing, two LowE glasses, argon filled
Hardware	ASSA or ROTO hinges; Ipa, Fix või Mila espagnolette; Fix or Hoppe handle
Aluminium Cladding	Optional external alu cladding
Thermal transmittance	Uw = 0,75 W/m²K; (1,23 x 1,48 m opening standard window)
Number of sash gaskets	2 sash gaskets
Dimensions	Side hung: Sash: W 362-902 mm x H 452-1532 mmSide hung with concealed hinges: Sash: W 362-902 mm x H 452-1532 mmTophung: Sash: W 385-1498 mm x H 432-1532 mmTop swing: Sash: W 385-1498 mm x H 432-1532 mm
