Our Viking21 Outward Opening Double or Triple Glazed Wood Window or Aluclad Window is the answer to today’s need for Higher Energy Efficiency combined with the simplicity of Nordic Design.

The Triple Glazed unit of our Viking21 Window comprises 2 Low E panes and 1 standard pane of glass with Argon Gas Filled Cavities and is 48 mm Thick overall. To achieve the Lowest Possible U values we use SGG Swisspacer Spacer Bars which provides the Best Warm Edge Solution. This window has a U Value of 0.8-1.2W/²K see chart below.

This window is available in Fully Reversible Top Swing, Side hung, Side Hung Projecting, Top Hung Projecting, Fixed Light & Shaped Frame Styles. Optional Aluminium Cladding on the outside face of this window ensures Durability and Espagnolette locking points around the casement keep the window Secure while closed.

Our Outward Opening Double Glazed or Triple Glazed Viking21 Timber or Aluclad window are Energy Efficient Windows at a Competitive Cost.



Viking21 Aluminium Clad Window:

Modern, enduring, energy efficient, sustainable.

Drawings (PDF)

Outward Opening Windows | Double or Triple Glazed Timber Windows | Aluclad Windows | Energy Efficient Windows Viking21
Viking21 Aluclad Window





Opening Types



Side hung

SIDE HUNG

Our Side Hung Window is a window type with a traditional design. Also available as a double casement “French” window (without a mullion so leaving a completely clear opening), suitable for use as a fire escape evacuation opening.

Dimensions: Maximum Width 906mm – Height 2036mm

Minimum Width: 356mm





tophung

TOP HUNG

Our Top Guided Window can accommodate up to a 2 m² opening casement window. Sliding hinges hidden into the groove between frame and sash provide a modern appearance with increased security. Depending on the opening dimensions this type of window can be used as a fire escape. One of the  recommended uses of top guided windows is in places where it is possible to clean the window from the outside eg ground floor, balconies etc.

Maximum Width: 1600mm – Maximum Height: 1536 mm**

Minimum Width: 300mm



top swing

TOP SWING FULLY REVERSIBLE

Our Top Swing Fully Reversible Window can accommodate up to a 2 m² opening casement window and is a real light catcher for your home. Sliding hinges hidden in the groove between frame and sash provide a modern look with increased security. The sash can be reversed almost 180º for easy access and cleaning so  can be used on upper floors. Also suitable for Fire Escape egress depending on dimensions.

Maximum Width: 1600mm – Maximum Height: 1592mm**

Minimum Width: 300mm

** Not possible to get the max height and max width at the same time.



Fixed light

FIXED LIGHT











Multi light (with transoms and mullions

MULTI LIGHT (WITH TRANSOMS AND MULLIONS

Our fixed lights and windows with mullions and transoms are a solution including a glass unit installed directly into the window frame, a good way to increase light gain to the inside of the building. Our product line also includes a wide variety of possibilities for structurally dividing frames with mullions and transoms. Single, multi-light window frames can be manufactured in sizes up to 2.5m x 3.2m

We also offer Windows for Angular and Circular Openings.





Finishing

Teknos Aquatop and/or VRC

RAL; NCS and translucent systems:

Värvivalik

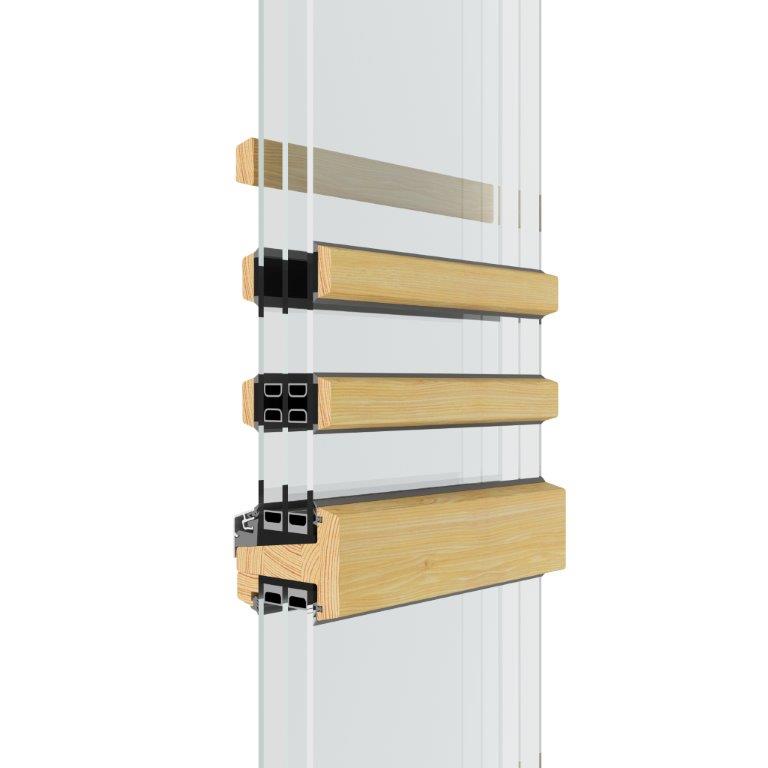

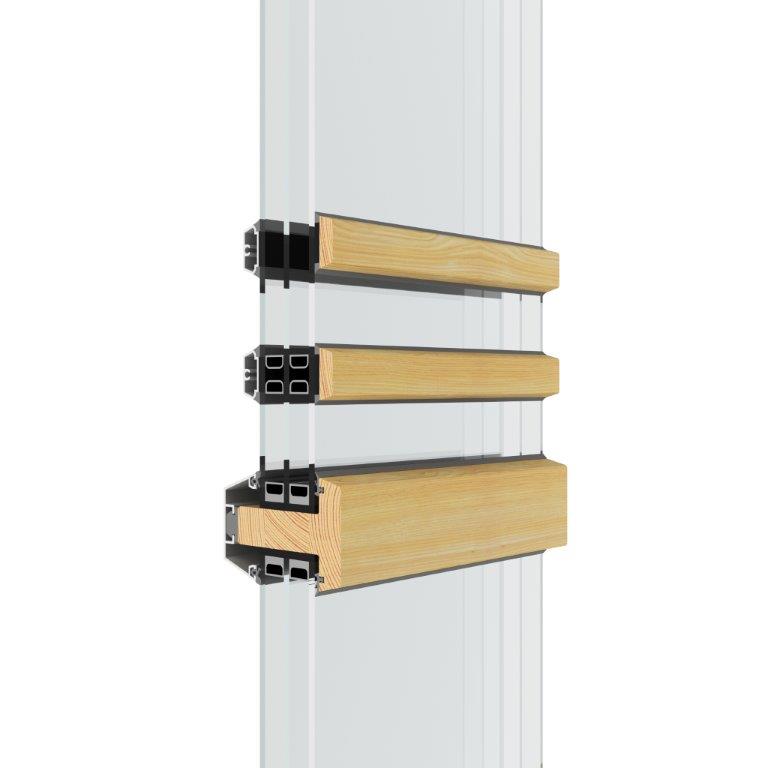

Glazing Bar Options

COPY of SW11 aken 02 smallCOPY of SW11 puitaluaken 02 small

Technical Data for the Viking21 Window

Aluminium Cladding Optional External Aluclad.
Triple Glazing 48 mm Triple Glazing, 2 Panes of Low E Glass, Argon filled.
Double Glazing 26 mm Double Glazing, 1 Pane of Low E Glass, Argon filled.
Frame Depth 116 mm in Timber or 128.5 mm Aluclad
Sound Insulation RW = 33 dB (-1;-4) with Standard Glazing
Sash and Frame Material Glulam Pine of Quality Class A1-A3
Number of Sash Gaskets 1 Sash Gasket
Colour of Sash Gaskets Grey
Thermal Performance Uw = 0.8-1.24 W/m²K (1,23 x 1,48 m opening standard window)
Hardware IPA Hinges –  Mila Espagnolette Lock – Fix handle
Security Certification PAS24 available as an option.
Air Tightness Class 4 (600Pa)
Water Tightness Class E1500 (1500 Pa)
Wind Load Resistance Class 5C (2000 Pa)
Dimensions

Side hung:
Sash: W 356-906 mm x H 317-2036 mm

Side projecting:
Sash: W 320-1038 mm x H 317-1738 mm

Top hung:
Sash: W 300-1600 mm x H 322-1536 mm

Top swing:
Sash: W 300-1600 mm x H 504-1592 mm

Links to Further Reading Below:

Additional information

Opening type

,

Hinge type

, , ,

Glazing type

, , ,

Timber Type

,

U Value
