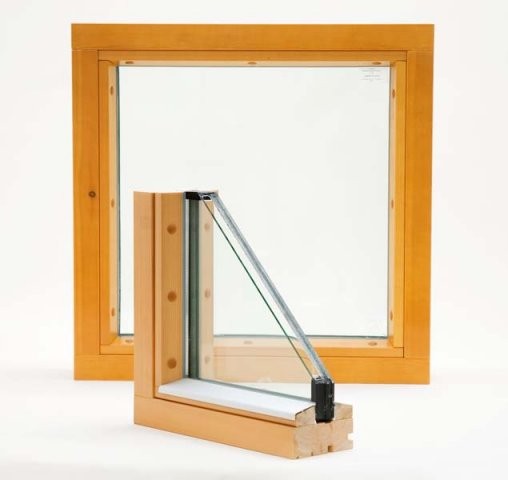

Our Fixed Light Fireguard Window is a fire protection window comprising a fixed light with a wooden frame. This triple glazed energy efficient window conforms to the fire resistance class EI30/E60 which means that it is resistant to fire for at least 60 minutes and for the first 30 minutes it also serves as a heat insulator – the average temperature of the surface on the opposite side of the fire will not exceed 140°C. Our fireguard window has been given the EI30/E60 classification in accordance with the EN 13501-2:2007 A1:2009 standard (download certificate – pdf).

The window is equipped with triple glazing.

It is very important to understand that if the window is left open, or in the ventilation position, it does not perform as a fire protection window – this product does not have an automatic closing system in case of fire.

The window is equipped with triple insulated glazing unit which includes 17 mm laminated Contraflam EI30 fire protection glass, fire resistant seals and gaskets are also used. Surface treatment is done with water based wood finishes the same as standard windows and doors.

In addition to the standard wooden window, we also offer an Aluclad fireguard window where the external face of the window is covered with aluminium profiles improving durability.

Fire protection glass is sensitive to temperature.

Scale of use is between -10^oC and 45^oC, In lower and higher temperatures the glass will turn opaque. This means that these triple glazed Fireguard Windows are not suitable in unheated rooms or where temperatures can rise very high (e.g. boiler room).

Drawings:

Fireguard windows PDF and DWG

Certificates:

2-glazed fireguard window

3-glazed fireguard window
